rigging solution

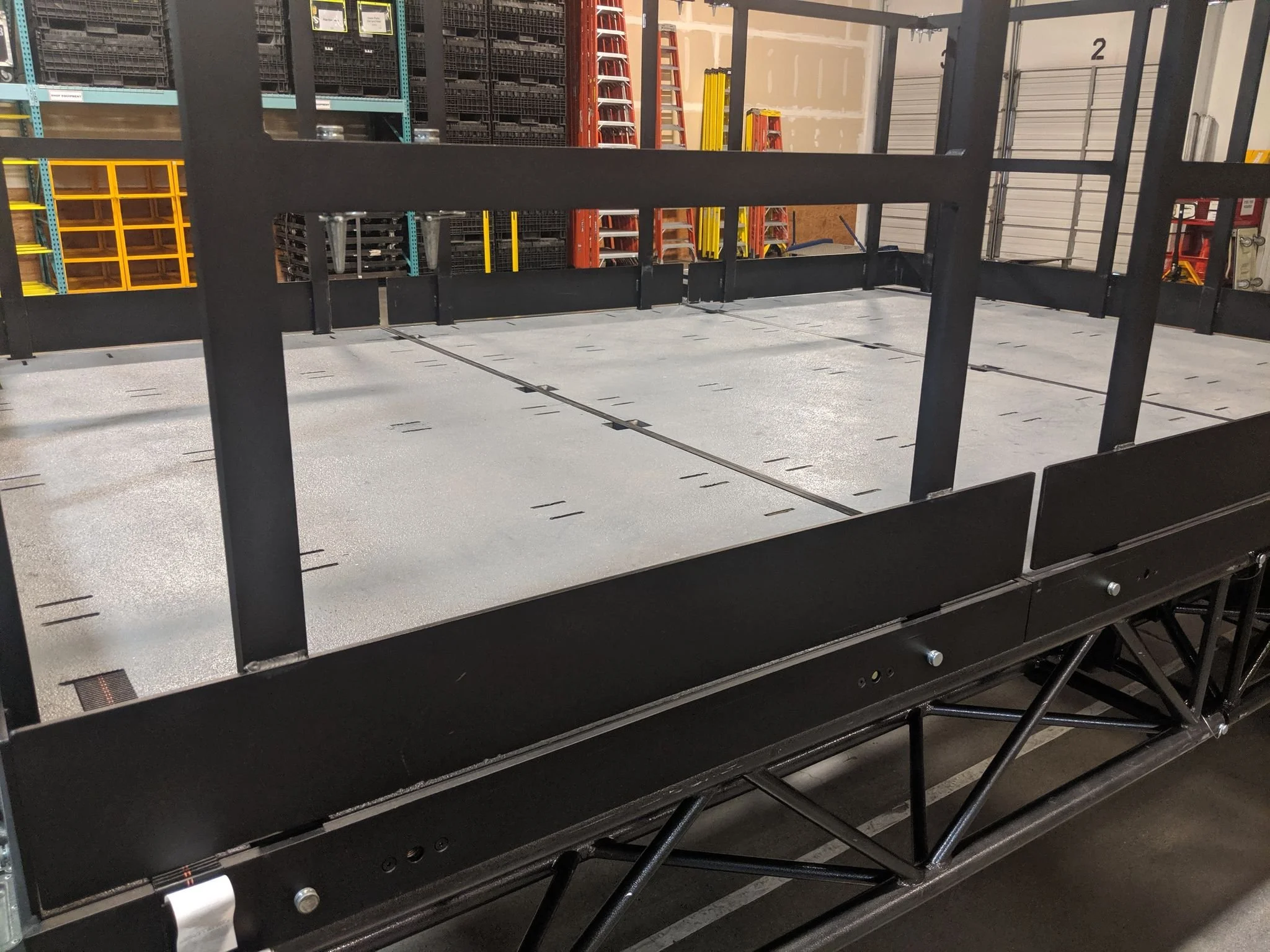

RIG-a-DECK is a versatile rigging solution for your overhead platform needs.
RIG-a-DECKK offers security of equipment with multiple areas of attachment for load restraint. Efficiently secure your equipment to the platform and enjoy a worry-free experience.
RIG-a-DECK is engineered for a 4000lb UDL load per deck. Use in a standalone 4’x8’ configuration or fastened together and expand to any required size.
RIG-a-DECK is designed with flexibility in mind. Our railing system is easily configured to allow personnel entry or a fully enclosed surrounding. With the post-thru platform design and continuous top rail design, our handrail is rigid and secure. The kick plate around the bottom provides added safety.
Do not worry about losing bolts or pins; RIG-a-DECK is designed with a bolt-capture system, built-in storage for all assembly pins and load rated straps for securing your equipment. Each deck system comes complete and ready to go.
Stand firm with our anti-slip fire resistant 18mm marine-ply decking. RIG-a-DECK is custom designed for strategic tie down locations and attachment to any manufactures supporting truss system.
RIG-a-DECK ships in a custom 32” wide set cart, holding five rigging platforms and 18 modular 4’ safety railings for multiple configurations.
Construction
· 6061-T6 Aluminum Framing
· 18mm Fire Resistant Birch Marine Grade Plywood
· Non slip Durabak-18™ Painted Top Surface
· Rig-Lock™ Connecting System
· Universal Safety Railing 44” H x 48” W
Shipping
· 5 Decks and 18 Safety Railing per Cart
· 10-30ft and 10-10ft Load Rated Straps per Cart
· Shipping Dimension 32” W x 100” L x 72” H
· Shipping Weight 1850 lbs. - Complete Cart
· Shipping Weight 195 lbs. - Single Deck
